Basic Information

Brief description

Ecological mesh and climber trellis mesh are two innovated and ecological solutions to private and commercial climbers for wall or decoration

Detailed description

Ecological Mesh & Climber Trellis Mesh Decorate Your Dull Walls

Ecological mesh and climber trellis mesh are effective and ecological measurement to decorate your dull walls for private or commercial use.
Here we will introduce the innovation for you. Just browse and design your own green wall projects.

Ecological Mesh – Three Dimensional Crimping Mesh

A set of display boards on street and several are made of ecological mesh with green climbers.

ECM-01: Ecological mesh can decorate street for multifold culture.

Ecological mesh is an economical but innovated method for both urban and country living. It is composed of three dimensional crimping mesh in intercrimping weaving structure, which supplies beautiful squaring mesh openings for plant climbing and growing. The ecological mesh is available for various colors, such as black, green, red and other customized colors. Different colors can suit multiple environments and applications you want to use.

Specifications:

A green frame with green cological mesh on white background shows its structure.

ECM-02:Ecological mesh has an three-dimensional crimping mesh structure.

Material: carbon steel, aluminum or stainless steel.
Surface treatment: hot dipped galvanized or PVC coated.
Weave type: intercrimpe weave is standard. (Other weave types available)
Mesh size: 2" × 2", 1" × 1", 1-1/2" × 1-1/2", 3" × 3".
Wire diameter: 0.120", 0.135", 0.148".
Bridge wire: 0.105" thickness, spaced 18" on center.
Channel size: 3" width, 1" return, 16 gauge (0.0635" thickness).
Panel width: standard is 48" (24" to 96" available).
Panel height: standard is 96" (24" to 240" available).
Accessories: mounting brackets & Hardware available.

Features:

Weaving structure without any weld to break.
Anti-corrosion surface for long service life and bright surface.
Customized colors for different plants and surrounding environments.
Customized panel sizes and shapes for your own unique design.
Eco-friendly. No pollution for environments and improve surrounding environments.
Easy installation and replacement.

Applications:

Office building facade.
Parking garages.
Entryways.
Backyards.
Pedestrian streets.
Street decorations.
Machine enclosure.

Green climbers are covering the wall along the ecological mesh.

ECM-03: Ecological mesh for private wall.

Several plants are growing along the school building.

ECM-04: Ecological mesh for school building.

A landscaping pillar are erect in the display hall with plants climbing on it.

ECM-05: Ecological mesh for display hall.

A man is stepping on street and several flowers and plants growing on the wall along ecological mesh.

ECM-06: Ecological mesh for street wall.

Climber Trellis Mesh – Three Dimensional Welded Mesh

A climber is growing along the climber trellis mesh.

ECM-07: Climber trellis mesh can let climbers grow freely.

Climber Trellis Mesh is a type of three dimensional welded wire trellis system for climber plants freely growing. It can also be used as decorations in cities, office buildings and other sites for special green wall.

The climber trellis mesh can be made of galvanized wires or PVC coating wires. They both ensure long service life and excellent corrosion and rust resistance performance. The PVC coating climber trellis mesh can suit more environments and plants for more applications.

Specifications:

A green frame with green PVC coating climber trellis mesh shows its structure.

ECM-08: Climber trellis mesh is tree dimensional welded mesh structure.

Material: low carbon steel.
Surface treatment:
- Hot dipped galvanized.
- Hot dipped galvanized + powder coated.
- Electrical galvanized + powder coated.
- Carbon steel + powder coated.
Wire diameter: 2.5–4.5 mm.
Mesh opening: 2" × 2".
Thickness: 1.5" × 5".
Width: 3' × 6'.
Length: commonly is 8'.

Standard Climber Trellis Mesh Specifications
Item	Diameter	Mesh size	Thickness	Width	Length
CTMS-01	2.5–4.5 mm	2" × 2"	1.5"	3'	8'
CTMS-02	2.5–4.5 mm	2" × 2"	1.5"	4'	8'
CTMS-03	2.5–4.5 mm	2" × 2"	1.5"	5'	8'
CTMS-04	2.5–4.5 mm	2" × 2"	1.5"	6'	8'
CTMS-05	2.5–4.5 mm	2" × 2"	3"	3'	8'
CTMS-06	2.5–4.5 mm	2" × 2"	3"	4'	8'
CTMS-07	2.5–4.5 mm	2" × 2"	3"	5'	8'
CTMS-08	2.5–4.5 mm	2" × 2"	3"	6'	8'
CTMS-09	2.5–4.5 mm	2" × 2"	4"	3'	8'
CTMS-10	2.5–4.5 mm	2" × 2"	4"	4'	8'
CTMS-11	2.5–4.5 mm	2" × 2"	4"	5'	8'
CTMS-12	2.5–4.5 mm	2" × 2"	4"	6'	8'
CTMS-13	2.5–4.5 mm	2" × 2"	5"	3'	8'

Features

Strong welded structure supplies extremely strong and rigid fence panel.
Galvanized surface supplies excellent corrosion and rust resistance even it is eroded by water and UV rays for long time.
PVC coated surface supplies more colors for different environments, plants and applications.
Three dimensional structure allow plants grow both in vertical and in 3D inner structures.
All customized. Except standard climber trellis mesh panels, we can design them into different shapes and designs according to your requirements.

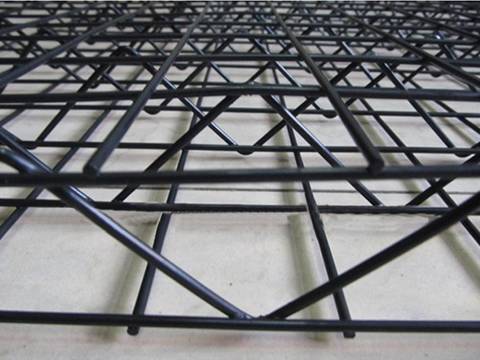

Side view of climber trellis mesh and we can see the tree dimensional structure.

ECM-09: Strong welds and PVC coating ensure long service life.

Perfect package protects climber trellis mesh from moisture and impacts during transportation.

ECM-10: Perfect package ensures good condition.

Applications

Small garden.
Private residence.
Shopping mall.
Car parks.
Schools.
Walkways.
Street decorations.
Facade of office building.

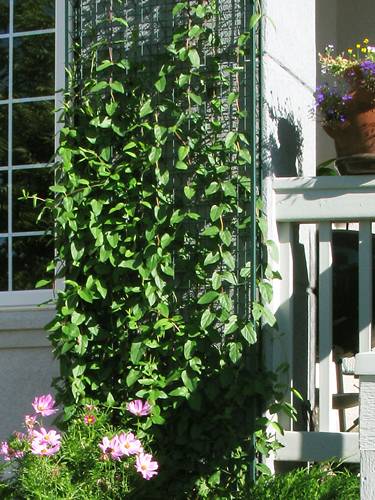

Climber trellis meshes are installed as private residence walls.

ECM-11: Climber trellis mesh for private walls.

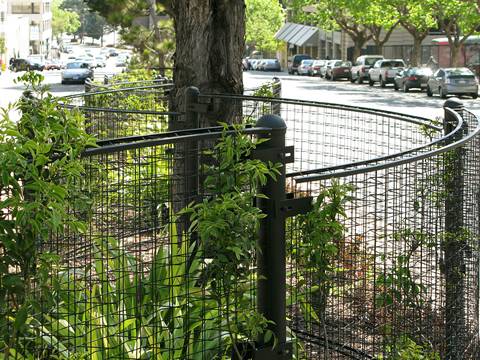

Climber trellis meshes are installed surrounding the tree in the street.

ECM-12: Climber trellis mesh for tree guard.

Several plants are growing freely along the climber trellis mesh on wall.

ECM-13: Climber trellis mesh for school wall.

Climbers and flowers are climbing on the garden post.

ECM-14: Climber trellis mesh for garden.
