Various types welded temporary fences with high security, corrosion resistance and easy installation, are used in construction site, roadside and factory
Welded Temporary Fence Has high security, removable performance
Welded temporary fence is a kind of welded wire fence. It is made of high quality carbon steel. Welded temporary fence has high strength and high security. So it is widely used in construction sites to prevent people from entering the dangerous area. Meanwhile, it can prevent items from being stolen. And our welded temporary fence is not easy to be corroded and rusted in the outdoor places. In addition, welded temporary fence with lightweight and simple structure is easy to install and remove. So it can be reused. It is an brilliant and economical choice for your construction.
Australia portable fence.

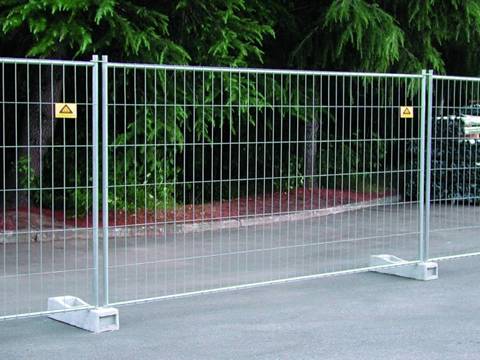

TF-1: Australia portable fence

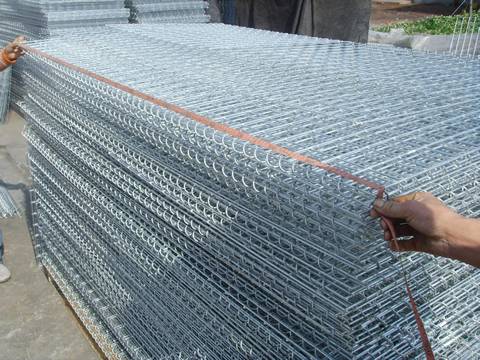

Australia portable fence is made of welded wire mesh panel and round pipes. The surface treatment of Australia portable fence is usually hot dipped galvanized. It not only provide bright surface but also provide good corrosion resistance for Australia portable fence. And it is easy to be installed with clamps and feet. Australia portable fence with lightweight is easy to be removed and reused.
- Specification
-
Material
carbon steel wire.
-
Surface treatment
hot dipped galvanized.
-
Wire diameter
3.0–5.0 mm.
-
Zinc thickness
42 microns.
-
Accessories
TF-2: Portable fence clamps
TF-3: Australia portable fence feet
Table 1: Specification of Australia Portable Fence
| Item | Category | Panel Length (mm) | Panel Width (mm) | Frame Outer Diameter (mm) | Frame Thickness (mm) | Mesh Opening (mm) |
|---|
| APF-1 |
Standard Portable Fence |
2400 |
2100 |
32 |
2 |
75 × 75
75 × 100
60 × 150
50 × 50
60 × 60 |
|---|
| APF-2 |
Light Weight Portable Fence |
2300 |
1800 |
32 |
2 |
75 × 75
75 × 100
60 × 150
50 × 50
60 × 60 |
|---|
| APF-3 |
Heavy Duty Portable Fence |
2900, 3000, 3300 |
2100 |
32 |
2 |
75 × 75
75 × 100
60 × 150
50 × 50
60 × 60 |
|---|
| Note: Other specifications also can be customized. |
Canada Portable Fence

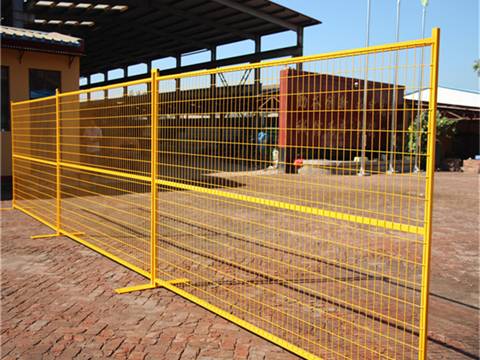

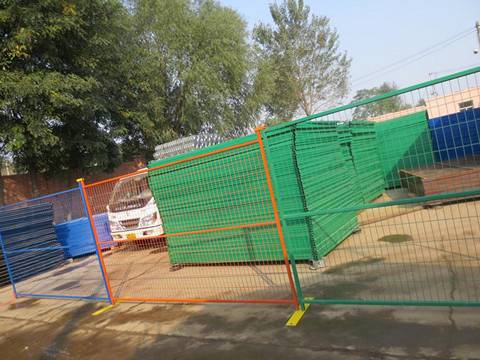

TF-4: Canada portable fence
Canada portable fence is made of welded wire mesh panel and square pipes. And there is a square pipe in the middle of welded wire mesh panel to support it and make it more strength. And it can be PVC coated, powder coated, galvanized or painted. Compared with Australia portable fence, it has many colors for customers to choose. In addition, Canada portable fence is installed with top coupler and fencing feet.
- Specification
-
Material
low carbon steel.
-
Surface treatment
- Electro-galvanized wire & Electrostatic powder coating.
- Hot dipped galvanized wire & Electrostatic powder coating.
- Black steel wire & Hot dipped galvanized.
-
Color
yellow, red, orange, green, blue and so on.
-
Middle frame
vertical or horizontal square pipe.
-
Accessories
TF-5: Top coupler
TF-6: Fencing feet
Table 2: Specification of Canada Portable Fence
| Item | Length | Height | Mesh Opening | Wire Diameter | Frame Pipe | Middle Frame |
|---|
| CPF-1 |
8' |
3.75' |
2" × 4" |
3, 3.5, 4 mm |
1" × 1", 1.5" × 1.5" |
20 × 20 mm, 25 × 25 mm |
|---|
| CPF-2 |
8.5' |
4' |
2" × 4" |
3, 3.5, 4 mm |
1" × 1", 1.5" × 1.5" |
20 × 20 mm, 25 × 25 mm |
|---|
| CPF-3 |
9' |
6' |
2" × 4" |
3, 3.5, 4 mm |
1" × 1", 1.5" × 1.5" |
20 × 20 mm, 25 × 25 mm |
|---|
| CPF-4 |
10' |
6' |
2" × 4" |
3, 3.5, 4 mm |
1" × 1" |
20 × 20 mm, 25 × 25 mm |
|---|
| CPF-5 |
10' |
8' |
2" × 4" |
3, 3.5, 4 mm |
1" × 1", 1.5" × 1.5" |
20 × 20 mm, 25 × 25 mm |
|---|
| Note: Other specifications also can be customized. |
Feature:
- High strength, high security.
- Corrosion resistance, rust resistance.
- Removable, can be reused.
- Light weight, easy to transport, install and remove.
- Flexibility, can be installed in various places.
- Various types and sizes.
Application
Welded temporary fence can be used in:
- Construction sites.
- Roadside.
- Factory.
- Park.
- Playground.
- Community.
- Yard.
- Farm.
- Swimming pool.
TF-7: Australia portable fence in construction site
TF-8: Australia portable fence installed in street

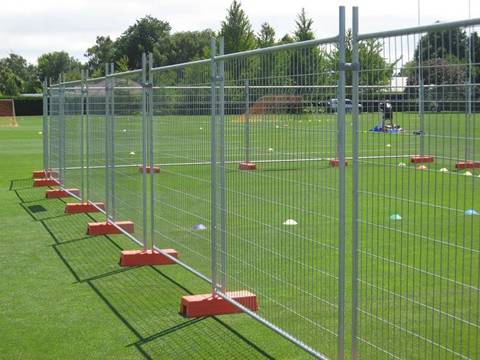

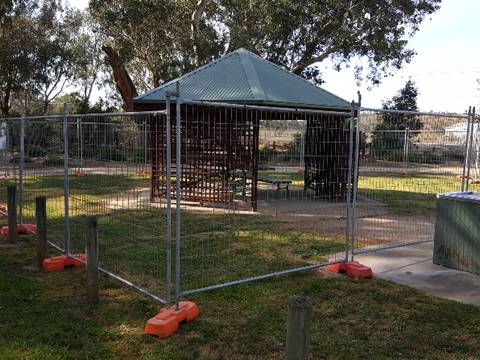

TF-9: Australia portable fence in park
TF-10: Australia portable fence in garden
TF-11: Australia portable fence in playground
TF-12: Australia portable fence used in community
TF-13: The Australia portable fence in park

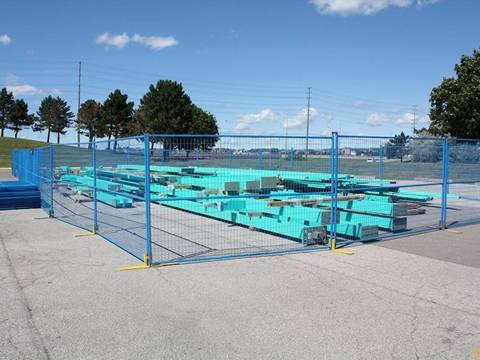

TF-14: Canada portable fence in yard
TF-15: Canada portable fence in factory
TF-16: Canada portable fence in office building
TF-17: Canada portable fence is to protect safety of components
TF-18: Canada portable fence installed in yard
