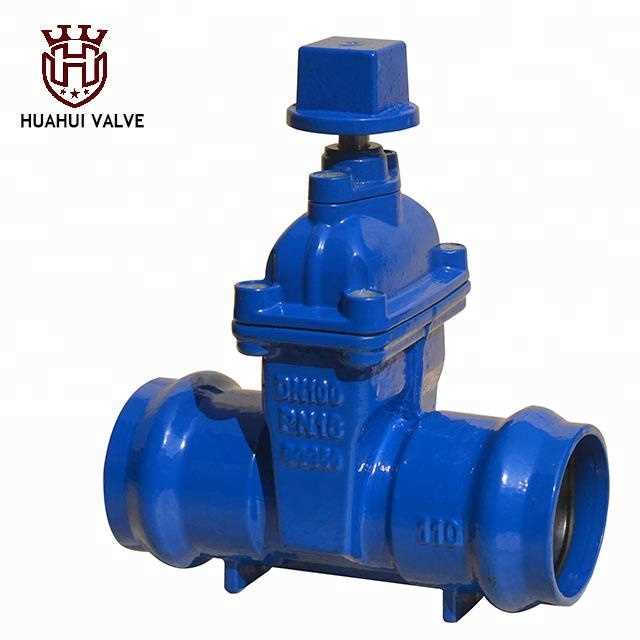

HUAHUI DIN PE/PVC pipe socket end resilient seated gate valve EURO socket ends for PVC pipes

USD 15.00-200.00 / Piece/Pieces | 1.00 Piece/Pieces (Min. Order)

Processing Time: within 10 days

Packaging Details: Plywood Boxes / Plywood Pallets Normal Size: 1.1M*1.1M*1.1M FOR ONE 20FT CONTAINER, CAN LOAD 20 (NORMAL SIZE) BOXES OR PALLETS FOR ONE 40FT CONTAINER, CAN LOAD 40 (NORMAL SIZE) BOXES OR PALLETS

Port: tianjin xingang port,qingdao port,

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brand Name

HUAHUI /OEM
Model Number

DIN
Place of Origin

Hainan, China (Mainland)
Port Size

DN50-DN300
Media

Water
Temperature of Media

Normal Temperature
Material

Ductile iron
Power

Hydraulic
Pressure

Medium Pressure
Structure

Gate
Standard or Nonstandard

Standard

Brief description

The socket end gaet valve valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food.

Detailed description

Features
Fixed, integral wedge nut prevents vibration and ensures durability
Fully vulcanized wedge with guide rails, integrated wedge shoes and a large conical stem hole
Stainless steel 420 stem with wedge stop and rolled threads for high strength
Brass circle thrust collar provides fixation of the stem and low free running torques
Triple safety stem sealing with an NBR wiper ring, a polyamide bearing with four NBR O-rings and an EPDM rubber manchette
Round EPDM bonnet gasket fixed in a recess
Countersunk and sealed stainless steel bonnet bolts encircled by the bonnet gasket
Low operating torque
Epoxy coating to DIN 30677-2, GSK approved

Company Profile

Hudraulic control valve(float valve,pressure reducing valve,pressure relief valve, flow control valve) ,
HVAC balancing valve,
Air release valve,
Rubber flexible joint and Stainless steel flexible joint,
Pipe fittings(unicersal coupling, flange adaptor, repair clamp, saddle...) etc, which used in water supply and sewage system\ fire fighting system, and heating ventilation air conditioning system.

Hebei Huahui Valve Co.,Ltd is located in Botou Industrial Zone,Cangzhou City Hebei Province China , which is the famous "Casting Town in China". Our workshop occupying 150000 square meters, our manufacturing process include machining, shot blasting ,epoxy powder coating,assembling, testing, packing, which is the whole process of valve production from foundry to finished Products.
Welcome old and new customers visit our factory and develop business with us.

Basic Information

Business Type:

Manufacturer, Trading Company
Main Products:

GATE VALVE,CHECK VALVE,BUTTERFLY VALVE,PRESSURE REDUCING VALVE,IRON WATER VALVES
Location:
Total Employees:

51 - 100 People
Year Established:

2014
