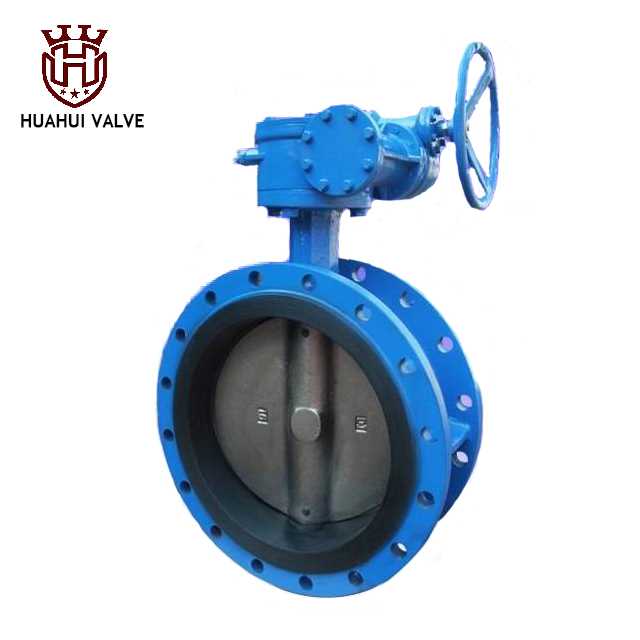

Huahui ductile iron body gearbox DN50-DN1200 ss304 disc Flange Butterfly valve

USD 4.00-400.00 / Piece/Pieces | 1.00 Piece/Pieces (Min. Order)

Processing Time: within 10 days

Packaging Details: plywood case

Port: tianjin xingang port, qingdao port

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brand Name

Huahui or OEM brand
Place of Origin

Hebei, China (Mainland)
Port Size

DN50-DN1200
Media

Water
Temperature of Media

Normal Temperature
Material

Casting
Power

Manual
Pressure

Medium Pressure
Structure

Butterfly
Standard or Nonstandard

Standard

Brief description

Description 1.Body&Disc: CI DI ss304 ss316 2.Seat:NBR EPDM PTFE 3.Working Pressure: PN10/16,125/150LB,10K 4.Size:DN50-DN1200 5.handles (1-1/2inches to 12 inches), manual gear operators (1-1/2inches to 48 inches) 6.Temperature ratings: -35 to 135°C 7.Viton Seat with High Temperautre to 400°C 8.Connection: wafer type, lug type, u-section Flanged type

Detailed description

Description
1.Body&Disc: CI DI ss304 ss316
2.Seat:NBR EPDM PTFE
3.Working Pressure: PN10/16,125/150LB,10K
4.Size:DN50-DN1200
5.handles (1-1/2inches to 12 inches), manual gear operators (1-1/2inches to 48 inches)
6.Temperature ratings: -35 to 135°C
7.Viton Seat with High Temperautre to 400°C
8.Connection: wafer type, lug type, u-section Flanged type

Material list
Part name	Materials
Body	Cast iron: ASTM A126CL.B, DIN1691 GG25, EN 1561 EN-GIL-200
	Ductile iron: ASTM A53665-45-12, DIN 1693 GGG40, EN1563 EN-GJS-200
	Stainless steel: ASTM A351 CF8, CF8M, CF3
	Carbon steel: ASTM A216 WCB
Stem	Stainless steel: ASTM A276 type 316, 400, ASTM A582 type 416
Taper pin	Stainless steel: ASTM A276 type 304, type316, EN 14501
Seat	NBR, EPDM, Neoprene, viton
Disc	Ductile cast iron (nickel plated): ASTM A53665-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10
O-ring	NBR,EPDM,Neoprene,Viton
Bushing	PIPE Nylon lubricated bronze
Key	Carbon steel
Test
Working pressure	PN10, PN16, PN25
Shell pressure	1.5Mpa, 2.4Mpa, 27.5Mpa
Seat pressure	1.1Mpa, 1.76Mpa, 37.5Mpa

Company Profile

Hudraulic control valve(float valve,pressure reducing valve,pressure relief valve, flow control valve) ,
HVAC balancing valve,
Air release valve,
Rubber flexible joint and Stainless steel flexible joint,
Pipe fittings(unicersal coupling, flange adaptor, repair clamp, saddle...) etc, which used in water supply and sewage system\ fire fighting system, and heating ventilation air conditioning system.

Hebei Huahui Valve Co.,Ltd is located in Botou Industrial Zone,Cangzhou City Hebei Province China , which is the famous "Casting Town in China". Our workshop occupying 150000 square meters, our manufacturing process include machining, shot blasting ,epoxy powder coating,assembling, testing, packing, which is the whole process of valve production from foundry to finished Products.
Welcome old and new customers visit our factory and develop business with us.
