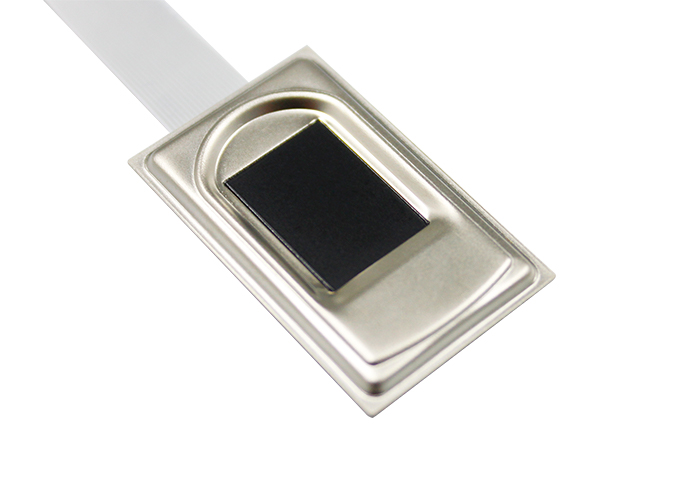

Miaxis SM-62UT Capacitive Fingerprint Module

USD 0.00-1.00 / Unit/Units | 100.00 Unit/Units (Min. Order)

Processing Time: 4-5 weeks

Packaging Details: outside box

Port: Hangzhou

Payment Terms: T/T ,

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brand Name

miaxis
Place of Origin

china

Brief description

Note: the 1:1 verification time* is calculated based the time of input template matched to the stored template. The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm. Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security. If you are interested in our products, please click here!

Detailed description

Miaxis SM-62UT Capacitive Fingerprint Module Fingerprint Authentication Modules

Biometric OEM Module

OVERVIEW:

Miaxis SM-62UT is a standalone Capacitive Fingerprint Module, consisting of semi-conductor fingerprint sensor, low power consumption & high-performance ARM core processor and FLASH etc chips.

The module supports on-board fingerprint image processing, template extraction, fingerprint matching (including 1: 1 and 1: N), template storage and other functions.

FEATURES:

• 508 dpi resolution

• 1:500 identification time < 1sec

• Live finger detection

• Power control function for for embedded applications to turn-on/off module

• Touch wake-up function

custom Biometric scanner SPECIFICATION:

Specification	SM-62UT
CPU	108MHz, Cortex-M4
Flash memory	512KB (Expandable up to 4MB)
Board Size(L x W x H)	35.0× 30.0× 7.5mm
Sensor Size(L x W x H)	33.4 x 20.4 x 3.6mm
Sensor type	Capacitive
Active platen area	9.6 x 12.8mm
Image Size	192*256 pixel
Image resolution	508dpi
Grey scale	8 bit (256 levels)
Power-on time	≤200ms
Enrollment time (Finger touch to template)	≤200ms
1:1 Verification time*	≤200ms
1:N Matching time	<1s,N=500
FAR	≤0. 001 %
FRR	≤1.5 %
Template size	810 bytes default
Fingerprint capacity	500 templates (3,000 at 4MB)
Live finger detection	Yes
ESD immunity	±8kV contact discharge ±15kV air discharge
Supply voltage	DC 4.3V-7.0V
Supply current	≤100mA
Supply current Sleep mode	≤10uA
Communication interface	UART
Operating Temperature	-20°C to +60°C
Storage Temperature	-30°C to +75°C
Operating humidity	20%RH～90%RH

Note: the 1:1 verification time* is calculated based the time of input template matched to the stored template.

The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm. Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.

If you are interested in our products, please click here!

Company Profile

Founded in 2000 and headquartered in Hangzhou, Miaxis Biometrics Co., Ltd, a subsidiary of XGD******, is Chinese’s industry-leading developer and manufacturer of biometric fingerprint devices and multi-biometrics systems (facial,fingerprint,finger vein etc) for identity management with core technologies of image processing and world renowned biometric recognition algorithms.

We provide both advanced capacitive & optical fingerprint scanner and verification terminal series and turnkey biometric solution including smart E-door lock system solution, visiting access control management soluiton, bank teller fingerprint management solution and so on, widely applied to finance, security, government affairs, police, home automation industries.

Based on over 18 years of industry experience, Miaxis is the pioneer of fingerprint recognition technology in domestic financial industry with more than 50% market share and key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
