Welded Gabion Mesh

>=1.00 Bag/Bags
USD 1.00

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: T/T ,L/C ,D/A ,D/P ,

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brief description

Welded wire mesh panels list: General welded wire mesh panel, 3D wire panel, reinforcing mesh, PVC coated weld wire mesh panel, stainless steel welded mesh panels

Detailed description

Welded Gabion Mesh

A welded gabion m box are on the ground.

WGM-01: Welded gabion box.

Our factory also can provide a variety of types welded gabion mesh. Gabion is an element in the form of blocks made of steel wire mesh, welded or woven, having hexagonal opening, square or rectangular openings. Welded gabion meshes are in the shape of block or regular cube size.

These special wire bins are made of robust wire, filled with the vibrations at the quarry and transport are accompanied by the lifting straps.

Welded Gabion meshes forms:

It includes welded gabion box, welded gabion basket, mattress, and the others. They are mainly used in building blocks of gravity walls, soil retaining wall, gravity wall and reinforced structures.

This mesh Specific Applications:

Strengthening the slopes.
Gabion retaining walls used for their flexibility, robustness and high drainage capacity.
Geotechnical condition assembling.
The expansion or construction of roads on the slopes.
Construction of railway embankments.
Rivers banks protecting.
Other places.

Table 1: Common Specifications of Welded Gabion Mesh
Item	Specification (m)	Diaphragms	Capacity (m3)
WGMS-01	0.5 × 0.5 × 0.5	0	0.125
WGMS-02	1 × 0.5 × 0.5	0	0.25
WGMS-03	1 × 1 × 0.5	0	0.5
WGMS-04	1 × 1 × 1	0	1
WGMS-05	1.5 × 0.5 × 0.5	0	0.375
WGMS-06	1.5 × 1 × 0.5	0	0.75
WGMS-07	1.5 × 1 × 1	0	1.5
WGMS-08	2 × 0.5 × 0.5	1	0.5
WGMS-09	2 × 1 × 0.5	1	1
WGMS-10	2 × 1 × 1	1	2
WGMS-11	3 × 2 × 0.3 (Mattress)	3	1.8
Note: Sets of gabion steps 1 m or 2 m wide

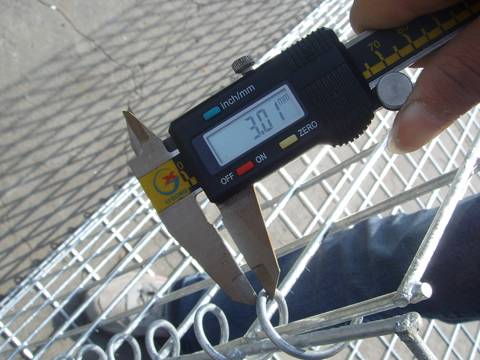

The spiral rod connecting wire of the gabion mesh is being measured.

WGM-02: The spiral rod diameter: 3.01 mm.

A half installed gabion mesh with its width being measured.

WGM-03: The width of gabion mesh: 1 m.

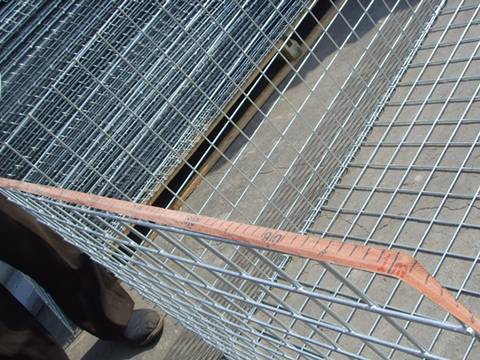

A stack of uninstalled gabion mesh and a sheet mesh is being measured.

WGM-04: The length of gabion mesh: 2 m.

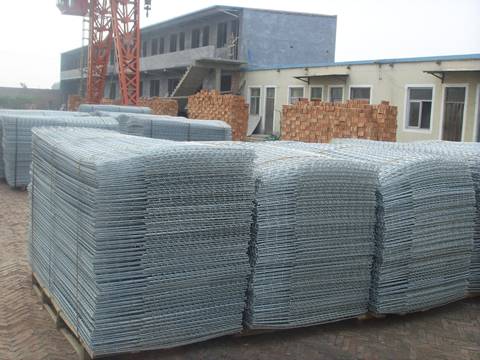

Many stacks of uninstalled gabion mesh is placed in workshop.

WGM-05: Uninstalled gabion mesh is in workshop.

A heavy duty welded mesh gabion box with uniform mesh openings is full of rocks.

WGM-06: Heavy duty welded mesh gabion box with rocks.
